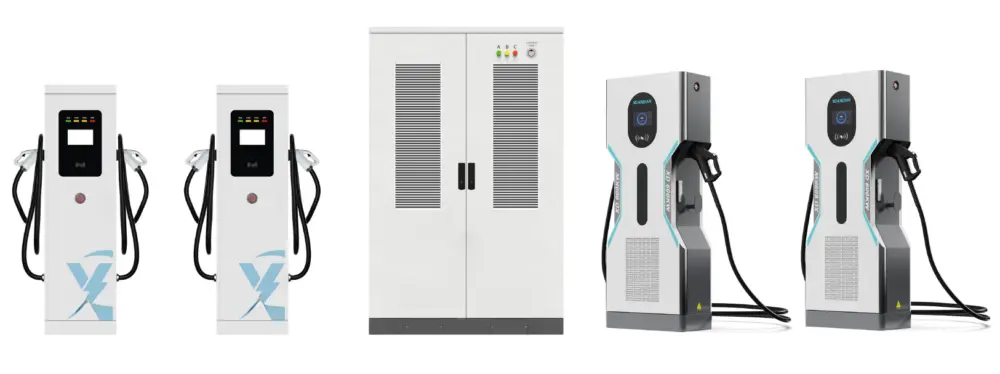

240-1080kW Multi-connector Group Charging System

Product Model	INTEK-DC-480kW
Activation(Configuration Options)	POS Machine/Scan QR Codes/RFID Payment Terminals with OCPP
Voltage Regulation Accuracy	≤±0.5%
Dependability	50000h
Input Voltage Range	380Vac±20%
Connectivity	Standard RJ45 Interface/4G
Output Current Error	≤±1%
Protection System	Over/Under Voltage, Shortcircuit, Overload, Leakage, Surge Protection
Frequency	50Hz/60Hz
User Interface	7 Inch
Output Voltage Error	≤±0.5%
Installation	Ground-Mounted
Output Voltage Range	200-1000Vdc
Dielectric Strength	≥2000V
Operating Temperature Range	-20~50℃
Enclosure Material	Sheet Metal
Rated Current	250Adc
Enclosure IP-Code	IP54
Storage Temperature Range	-20~70℃
Charging Cable Length	5m (Customization Acceptable)
Output Maximum Power	480kW
Noise	< 75dB
Connector Type	GB/T20234.2-2015 Type C/CCS1/CCS2
Charging Connector	7/8 connectors
Current Regulation Accuracy	≤±1%
Measurement Method	Energy Meter

SKU: INTEK-DC-480kW Category: EV Charger

Description

For charging sites outside China, we provide 1% of vulnerable spare parts and 24-hour remote guidance service.

Hierarchical Management
Implement a three-tier management system encompassing operator-level, charging station-level, and charger terminal-level management. This integrates various operators into a large platform, enabling the sharing of chargers and operational data.
Remote Monitoring
Enable remote monitoring of each charger’s status, collect operational data, and generate various types of production reports to simplify operational management.
User Management
Seamlessly combine mainstream charging cards with WeChat accounts. Charging cards can be used both online and offline simultaneously, making charging more convenient.
